Smart Cat Litter Box LB-06
LB‑06 is an automatic self‑cleaning litter box with radar safety, three modes, and Tuya app control. It’s made for cats up to 12.5 kg.
| Options | <100 pcs | 100-500 pcs | 501-1000 pcs |
| Basic Version | $67 | $66 | $65 |
| APP Version | $70 | $69 | $68 |
What are involved:
Litter Box, Waste Bin, Pedal, Legs, Cat Litter Bag, Adapter, Manual, Brush

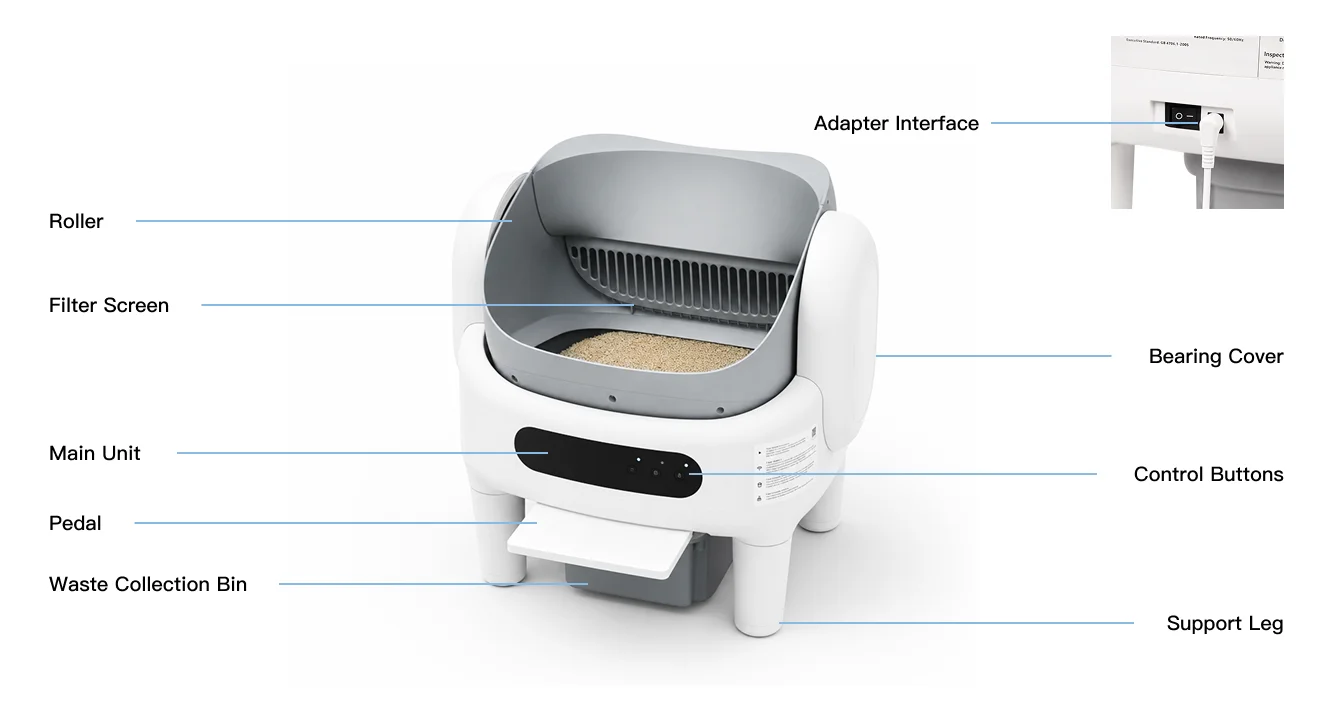

Product Details of Smart Cat Litter Box
One Button Per Mode. Full Control.
3 dedicated buttons on the panel. Each controls one mode independently.
Cleaning Button
Short press to start automatic waste removal. Press again to pause. Auto-resumes after 15s of inactivity.
Sifting
Press & hold 3s to start sand changing. Short press to pause. Auto-resumes after 15s. Hold 3s to cancel.
Raking
Short press to start automatic raking and smoothing. Press again to pause.

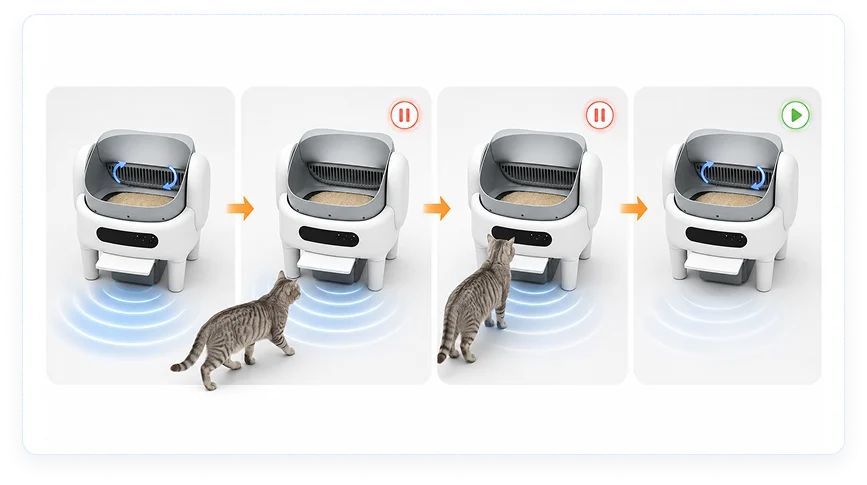

Microwave Radar — Cat Detected, Motor Stops
The built-in microwave radar detects when your cat approaches the litter box during operation. The motor stops immediately and resumes only 5 seconds after the cat leaves.
To toggle radar:
Quick-press the No.1 button 5 times
(interval ≤ 0.5s). Off by default.
LED indicator:
- Radar On = Green
- Radar Off = White
3 independent sensors work together to protect your cat during every operation.
| Cat Approaches | Drum Gravity Sensing | Infrared Detection | Anti–Pinch Protection |
|---|---|---|---|
| Cleaning | |||
| Emptying | ✖ | ✖ | |
| Resetting |
3 LED Indicators — Know Everything at a Glanc
No.1 LED
Radar / Child Lock
No.2 LED
Sifting
No.3 LED
Cleaning / Raking
Child Lock:
Auto-engages after idle.
To release —press & hold Sift + Clean buttons together for 3 seconds. No.1 LED changes from Blue to Green.
hold Sift + Clean 3 seconds

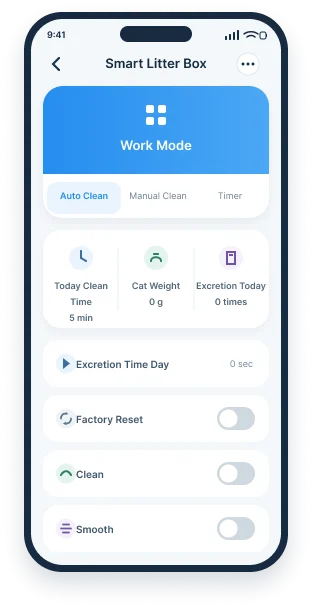

Tuya Smart App — Control From Anywhere
Connect via 2.4G WiFi and manage your litter box remotely. Monitor status, trigger cleaning, and receive alerts — all from your phone.
Download:
Search "Tuya Smart" in App Store or Google Play
Connect:
Hold WiFi button 3s → LEDs 1,2,3 cycle → follow app prompts
Setup:
Tap "Add" → Enter WiFi & password → Wait → "Finish"
- Note: 2.4G WiFi only. 5G not supported.
3 Removable, Washable Parts
Disconnect power before disassembling. Dry thoroughly before reassembly.

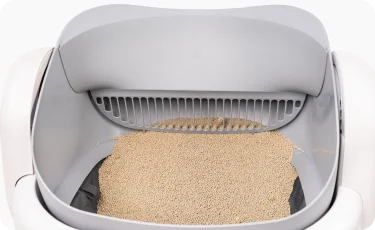

Waste Collection Bin
Press empty button →
all litter drops into bin. Slide out bin,
remove trash bag, clean.
Roller
Push lock switch on bearing cover inward. Lift cover, then lift roller upward for cleaning.
Fabric Soft Basin
Hook the disassembly handle, pull out firmly. Wash directly with water. Dry completely.
Use clean water or household cleaners. Avoid strong corrosive cleaners. Never submerge the base or circuit parts.
Why LB-06 Makes Life Easier
No Scooping
Automatic cleaning after every visit
Remote Control
Monitor & trigger cleaning from your phone
Cat-Safe Design
Radar + gravity + infrared triple protection
Specs
| Product model | LB-06 |
| Working Mode | Automatic / Manual |
| Application | For cats (up to 12.5 kg) |
| Material | PP + ABS (or Stainless Steel) |

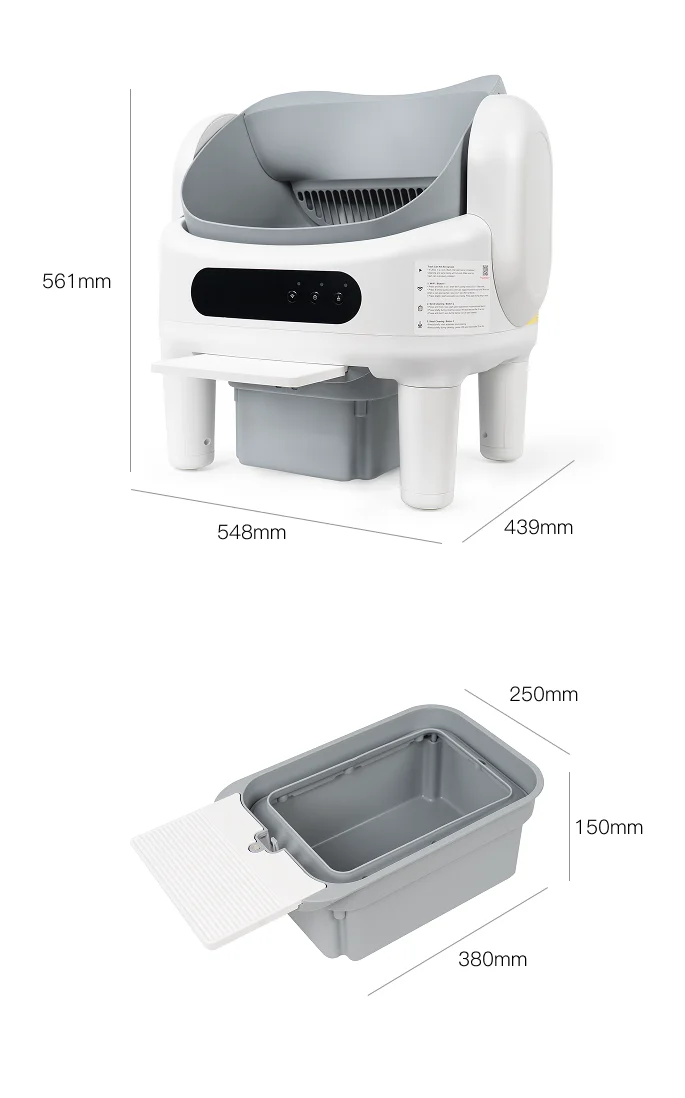

| Dimensions | 548 × 561 × 439 mm |
| Net Weight | 8 kg |
| Power Supply | DC 12V / 2A |
| Rated Power | 10W |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -10 ~ 60°C |
| Safety Sensors | Gravity + Infrared + Anti-pinch |
| Radar | Microwave radar (toggle via 5× press) |
| WiFi | 2.4G only (Tuya Smart app) |
| Suitable Litter | Mixed, bentonite, mineral sand, tofu litter |
| Not Compatible | Large-grain pine, crystal litter |
| Carton Size | 51 × 45 × 37 cm |
| Container Capacity | 805 units / 40HQ |
| Maximum power | 15W |
| Certifications | PSE, FCC, UL, CE, RoHS |
| Warranty | 12 months |
Find the Right Self Cleaning Litter Box for You
| Waste bin capacity | 10L | 10L | 15L |
| Cylinder Space | 62L | 76L | / |
| Multi-cat recognition |  | |  |
| AI camera | | | |
| Waste Packing Methods | Drawstring Waste Packing | Auto Waste Packing | Drawer+Litter bag |
| Deodorization | 4 | 4 | |
| Health Insights | | | |
| APP | | | Tuya smart |
| Safety sensor | 7 | 20 | 6 + Radar |
| Entrance height | 28 | 26.5 | / |
